Wall System

Q130

Resilient Acoustic Wall Damping System

STC 44OITC 31Rw 44 dB ±5 dB≈ 130 mm

The Q130 Resilient Acoustic Wall Damping System is a high-performance independent wall lining. An SG-DM102 Vibration Damping Mat covers the base wall and SG-WD50 Wall Shock Dampers isolate the cassette-keel frame, creating a resilient, decoupled cavity that stops structure-borne transmission.

Filled with 50 mm mineral / synthetic wool and clad in composite insulation board plus plasterboard, the Q130 reaches STC 44 / Rw 44 dB at around 130 mm - ideal for party walls, studios and cinema rooms that need serious airborne isolation.

Request Quote Contact Technical Team

Exploded Mounting Structure

10 layers · top to bottom

Layer Build-up

1
Concrete Wall
2
SG-DM102 Vibration Damping Mat
SG-DM102 →
3
Min. 80 kg/m³ Mineral / Synthetic Wool
600 × 1200 × 50 mm
4
SG-WD50 Wall Shock Damper
115 × 50 × 55 mm
SG-WD50 →
5
Sub Cassette Keel 50SS
Cassette Keel →
6
Main Cassette Keel 28MS
Cassette Keel →
7
SG-DM452 Vibration Damping Tape
45 × 6000 × 2 mm
SG-DM452 →
8
Composite Sound Insulation Board
1200 × 1200 × 16–18 mm
SG-E17 SG-C10 SG-CN10 SG-F8
9
Plaster Board (by others)
10
AcousPanel or Other Finishes
AcousPanel →

Layer Specifications

Q130 layer specifications
Layer	Product	Specification	Application
Damper	Wall Shock Damper	115 × 50 × 55 mm	Break sound bridges
Damper	SG-DM102 Vibration Damping Mat	1000 × 10000 × 2 mm	Reduces vibration transmission
Absorption	Mineral Wool / Synthetic Wool	600 × 1200 × 50 mm	Uses sound absorption to enhance insulation
Structure	Cassette Keel	Main: 28 mm \| Sub: 50 mm	Secure fit with preserved acoustic decoupling
Damper	Vibration Damping Tape	45 × 6000 × 2 mm	Minimized rigid connections
Insulation	Composite Sound Insulation Board	1200 × 1200 × 16–18 mm	Greatly improves sound insulation performance

System Description

Panel 1

1 × 100 mm Concrete + 1 × 2 mm Rubber

Frame

Steel Spring Hanger with Neoprene, spacing 600 mm, cavity width 100 mm + 50 mm Mineral Wool (80 kg/m³)

Panel 2

1 × 8 mm Fibre Cement + 1 × 1 mm Rubber + 1 × 6 mm Plasterboard

Details

Panel size 2.4 m × 2.4 m · Partition surface mass 25 kg/m² · Mass-air-mass resonant frequency 86 Hz

Acoustic Performance

STC 44OITC 31Rw 44 dB ±5 dB≈ 130 mm

Sound Insulation Prediction

Simulated with

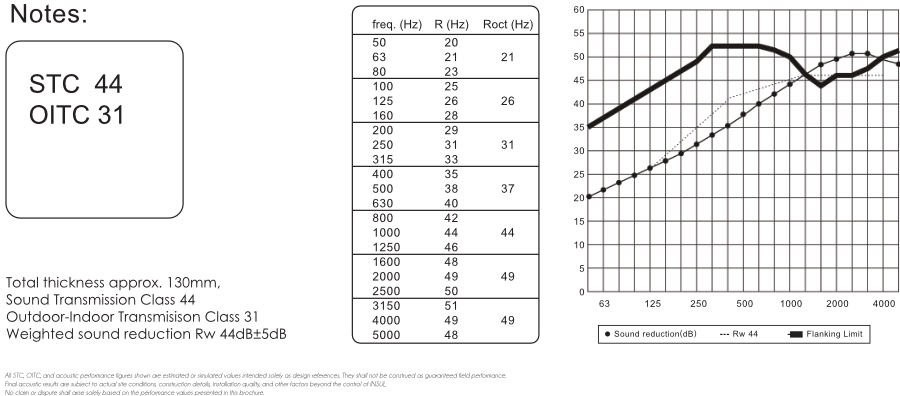

Q130 sound insulation prediction chart - STC 44, OITC 31, Rw 44 dB

All STC, OITC and acoustic performance figures are estimated / simulated values (INSUL Sound Insulation Prediction v9.0.22, © Marshall Day Acoustics 2017) intended solely as design references - not guaranteed field performance. Final results depend on site conditions, construction details and installation quality, beyond the control of INSUL.
