The Science of
Silence
How sound insulation, vibration damping, and acoustic absorption work together to deliver complete noise control.
The Three Challenges of Sound Control
Every acoustic environment faces three distinct problems. Each requires a different engineering solution and different materials.
Airborne Sound
Sound transmitted through the air - voices, music, bass frequencies. Requires high-density mass barriers to block energy from passing between spaces.
Key Metric
Up to 38 dB
Brochure Sound Reduction Index (Rw) · SG-F12-2
Structure-Borne Vibration
Vibrations travelling through walls, floors, and ceilings. Requires mechanical decoupling - isolating structures so vibration energy cannot transfer between elements.
Key Principle
Vibration isolation
Low-frequency control
Room Acoustics
Internal reflections creating echo and reverberation. Requires porous absorption materials that convert sound energy into heat, reducing reverb time and improving clarity.
Key Metric
NRC 0.80
Tested 9 mm supplier panel · 200 mm rear air cavity
Mass-Spring-Mass Principle
Our core insulation technology relies on the Mass-Spring-Mass physical law. By sandwiching a viscoelastic IIR damping layer (the spring) between high-density boards (the mass), we effectively decouple the structure and prevent sound transmission.
When sound waves hit the first mass layer, they cause vibration. As this energy travels through the IIR damping core, it is converted into minute amounts of heat energy through shear deformation - significantly reducing the energy that reaches the second mass layer.
- Dissimilar Mass Layers
Different board materials prevent resonance coupling
- IIR Damping Core
Viscoelastic rubber converts vibration to heat
- Energy-to-Heat Conversion
Sound energy is dissipated, not reflected or transmitted
"Every layer has a purpose. Every material is chosen for its acoustic contribution."
Three Boards, Three Configurations
Each board combines different mass layers with IIR damping for specific performance characteristics.
SG-E17
Composite Sound Insulation Board
CS + IIR + CS
Thickness
17mm
Reduction
33 dB
Weight
37 kg
SG-C10
Composite Sound Insulation Board
GYP + IIR + FCB
Thickness
17mm
Reduction
32 dB
Weight
25.5 kg
SG-F8
Composite Sound Insulation Board
FCB + IIR + FCB
Thickness
16mm
Reduction
32 dB
Weight
34 kg
Sound Damping
Mechanical Decoupling
Vibration Isolation Principle
Structure-borne vibration is the most challenging acoustic problem. When bass frequencies cause walls, floors, and ceilings to vibrate, the entire building structure becomes a speaker - transmitting noise to every connected room.
Damping products use spring-loaded and viscoelastic components to reduce vibration transfer. Structural decoupling reduces rigid transmission paths between building elements.
Viscoelastic materials dissipate vibration energy as heat. The loss factor describes how effectively a material dissipates that energy: a higher loss factor means vibration decays faster. Material damping and structural decoupling complement each other.
- Structural isolation using shock dampers and rubber-cork floor blocks
- Viscoelastic mats for surface-level damping
- Speaker pads to isolate subwoofer vibration
Structural Isolation
Shock dampers and rubber-cork blocks for ceilings, walls and floors
Surface Damping Materials
Viscoelastic mats and strips applied to walls, ceilings, and metal stud connections
Speaker Isolation
Spring-loaded pads to isolate subwoofer bass vibration from the structure
SG-SD10
Subwoofer Damping Pad (Medium)
SG-SD27
Subwoofer Damping Pad (Large)
Porous Fibre Absorption
When sound enters a room, it bounces off hard surfaces creating echo and reverberation. Absorption panels solve this by converting reflected sound energy into heat through friction within a porous fibre network.
NRC describes sound absorption within a room. NRC 0.80 - tested 9 mm supplier panel with a 200 mm rear air cavity.
- Reduces reverb time for speech intelligibility
- Improves musical clarity in performance spaces
- Test result uses a 200 mm rear air cavity
NRC 0.80
Tested supplier panel with a 200 mm rear air cavity.
GBT3014574149 · GB/T 20247-2006 / ISO 354:2003
AcousPanel Features
High-density polyester (PET) fibre - engineered for acoustic performance and design flexibility.
0.80
NRC · 9 mm sample · 200 mm cavity
48
Colour Options
ENF
Not detected (<0.005 mg/m³)
Easy Install

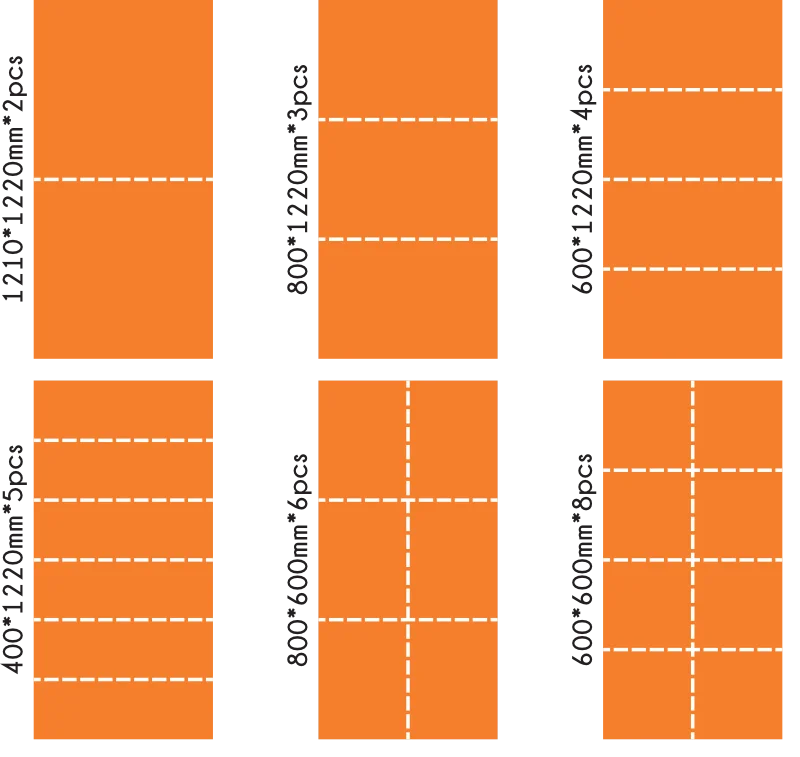

Panel Cutting Configurations
From Individual Components to
Complete Acoustic Systems
Five Steps to Total Noise Control
A complete acoustic solution combines all three principles in the correct sequence.
See detailed layer-by-layer assembly specifications for ceiling, wall, and floor systems.
Installation Guide →Choose the Right Product
Compare insulation boards and find the right product combination for your application.
Insulation Board Comparison
| Specification | SG-E17 | SG-C10 | SG-CN10 |
|---|---|---|---|
| Configuration | CS + IIR + CS | GYP + IIR + FCB | M.GYP + IIR + FCB |
| Thickness | 17mm | 17mm | 17mm |
| Weight | 37 kg | 25.5 kg | 25.7 kg |
| Sound Reduction | 33 dB (Rw) | 32 dB (Rw) | 32 dB (Rw) |
| Best For | Maximum reduction, heavy-duty venues | Weight-sensitive installations | Humid & moisture-prone areas |
Application Matrix
| Application | Insulation | Damping | Absorption | Sealant |
|---|---|---|---|---|
| Recording Studio | SG-E17 / SG-CN10 | CD50 + WD50 + FD50/25 | AcousPanel | SG-AS65 |
| KTV / Karaoke | SG-E17 / SG-C10 | CD50 + WD50 | AcousPanel | SG-AS65 |

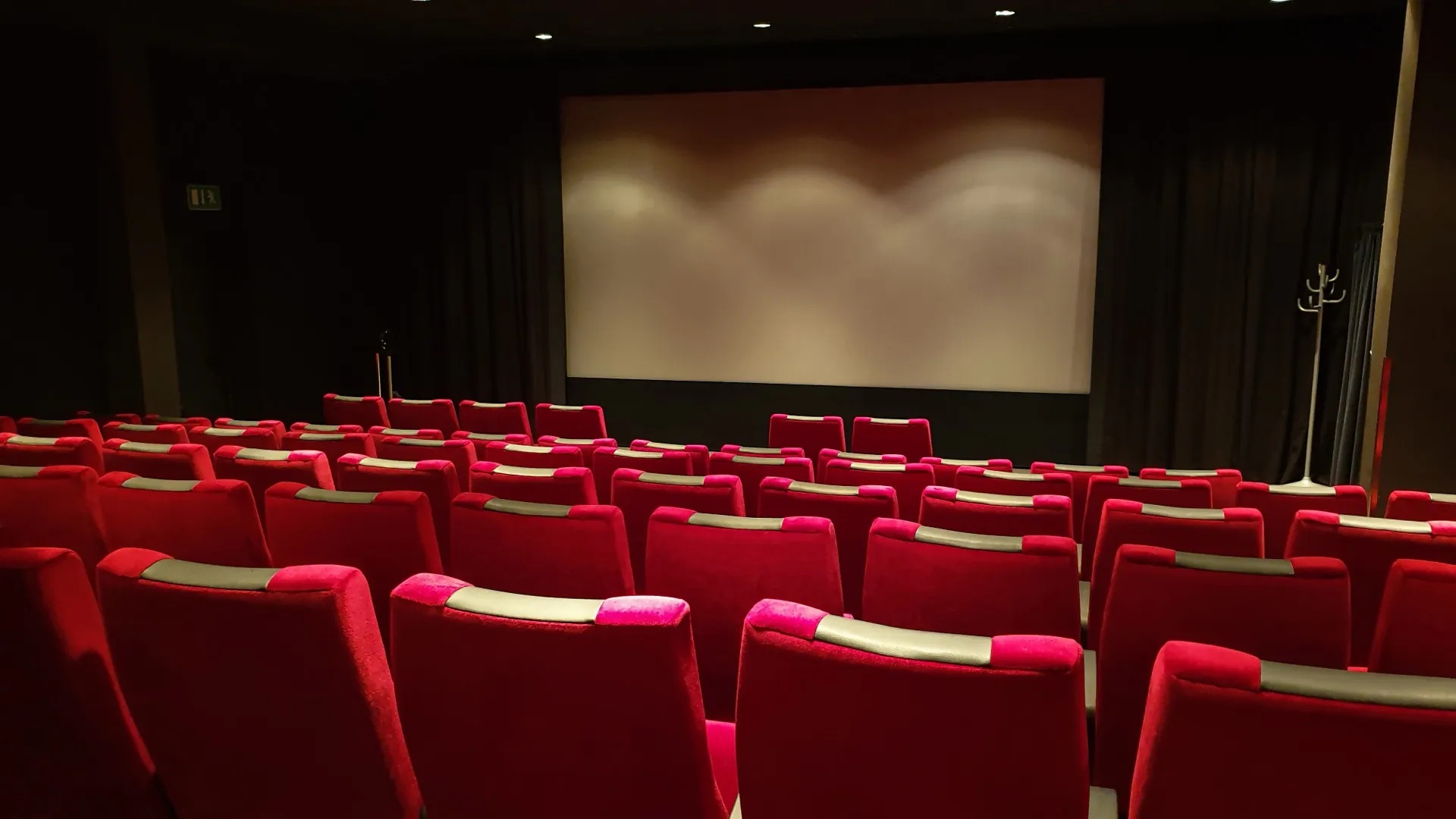

| Cinema / Theater | SG-E17 | CD50 + WD50 + SD10/SD27 | AcousPanel | SG-AS65 |
| Hotel / Residential | SG-C10 | WD50 + DM452 | AcousPanel | SG-AS65 |
| Home Theater | SG-E17 | CD50 + WD50 + SD10 | AcousPanel | SG-AS65 |

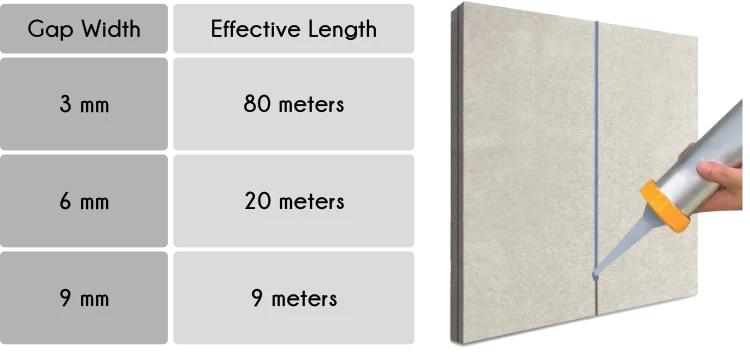

The Final Seal
Even the best insulation system fails if gaps remain. Sound travels through the path of least resistance - a 1% gap in coverage can transmit up to 50% of sound energy. Acoustic sealant closes every joint, edge, and penetration point to ensure the system performs as designed.
SG-AS65 is a flexible sealant for gaps and joints. The supplier laboratory result is Rw 31 dB for the tested sealed assembly (J25C063552100BR); this is not a noise reduction rating for sealant alone.
View SG-AS65 →
Ready to Engineer Your
Acoustic Solution?
Our technical team can help you select the right combination of products for your specific application and performance requirements.
