Sound InsulationSG-C10
Composite Sound Insulation Board
Lightweight composite sound insulation board with 9mm GYP, 1mm IIR damping layer, and 7mm FCB. Achieves 32dB sound reduction. Ideal for residential, hotels, cinemas, and recording studios.
Product Description
SG-C10 Composite Sound Insulation Board is designed according to the transmission characteristics of sound. It consists of 3 layers of materials that are 9+1+7mm each with a total of 17mm thickness.
A damping layer selection of 1mm IIR (Isobutylene-Isoprene Rubber) sandwiched between a layer of 9mm GYP (Gypsum Board) and 7mm FCB (Fibre Cement Board).
By combining materials with different masses, stiffness levels, and thicknesses, the system disrupts multiple sound frequencies and increases Rw performance.
Product Engineering Principle & Performance

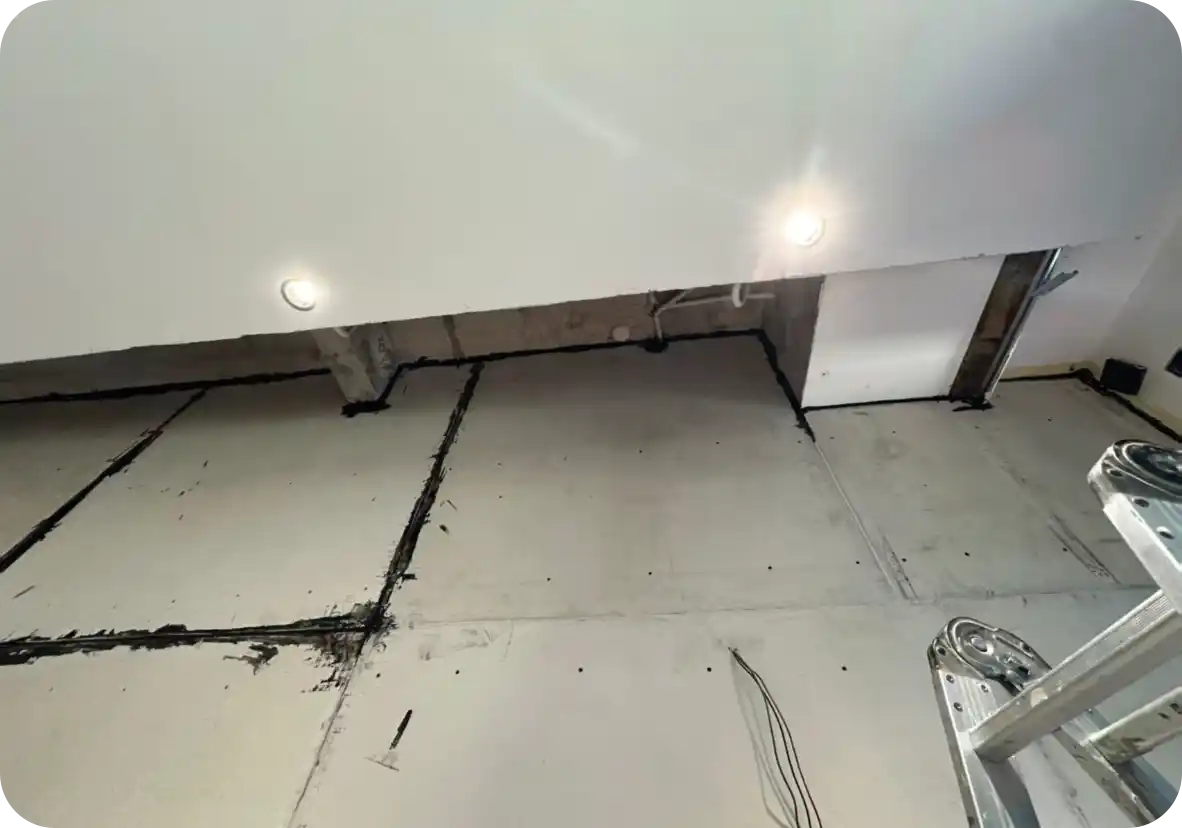

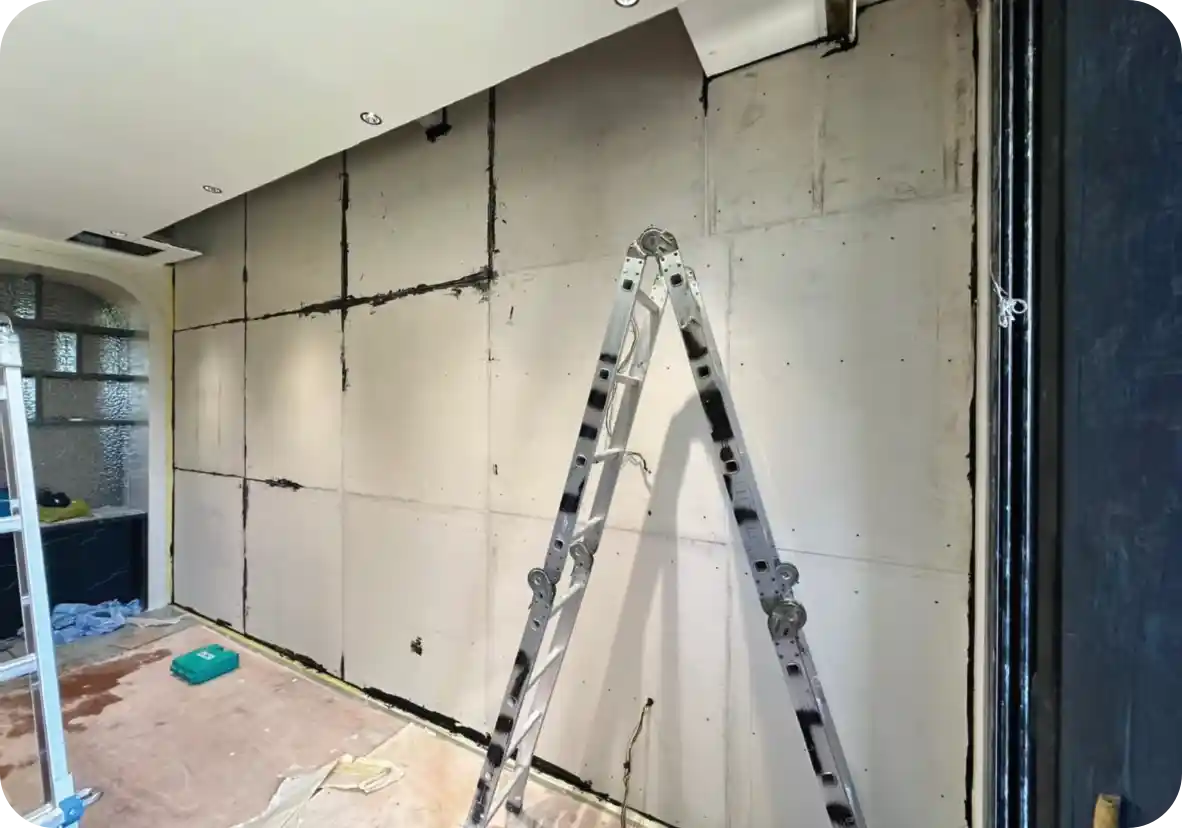

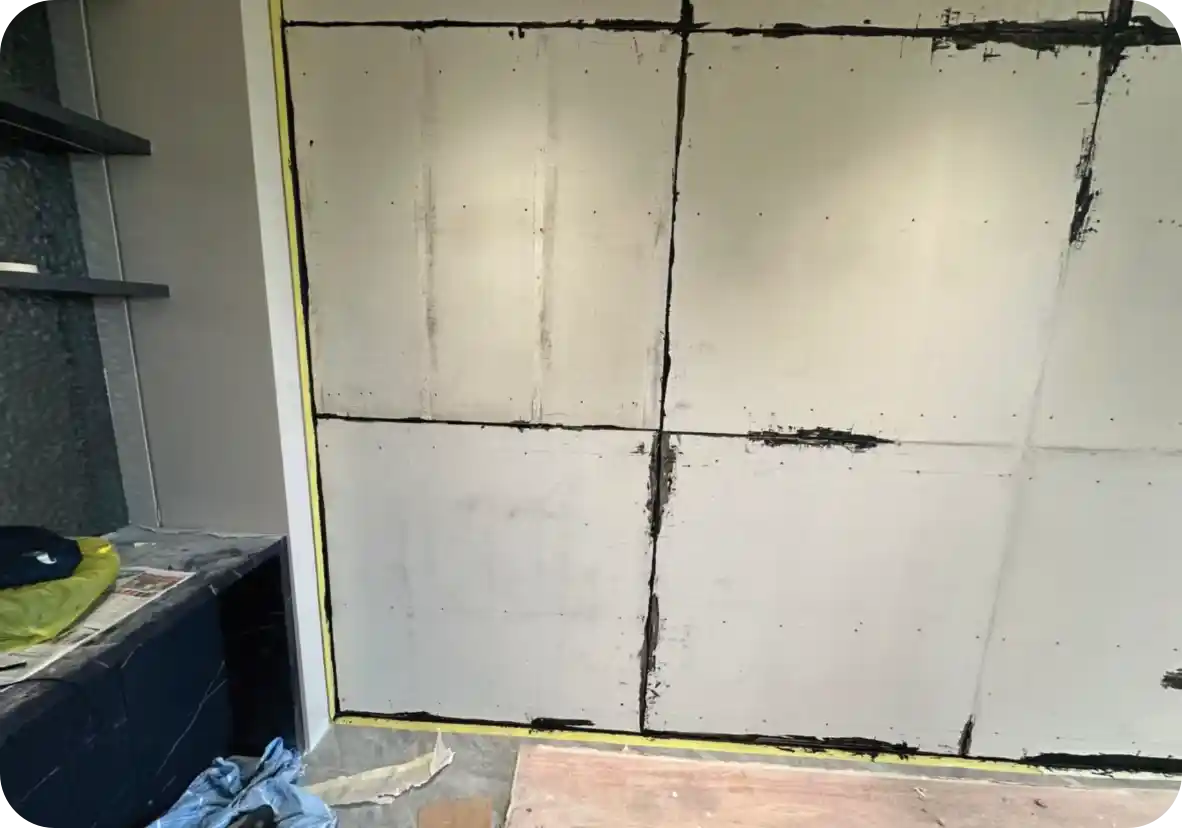

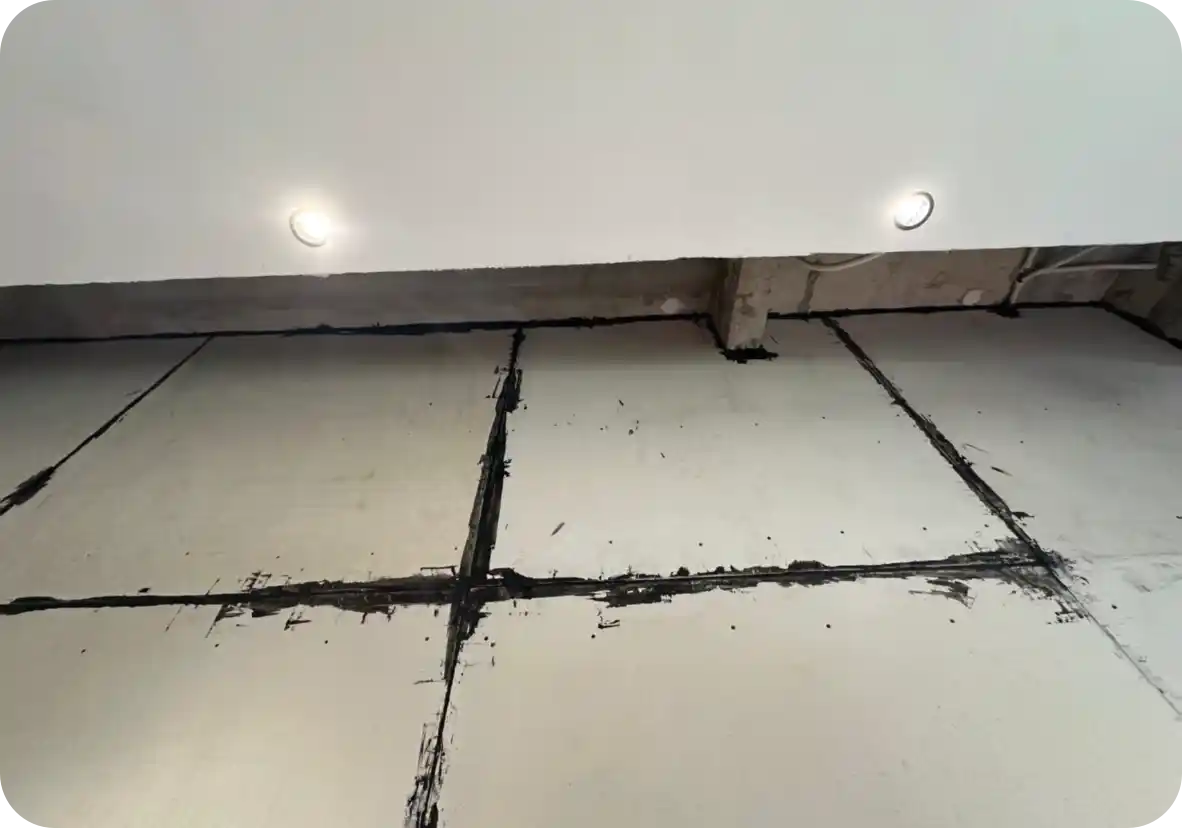

Project Gallery
Product Engineering Principle
The SG-C10 utilizes a sophisticated three-layer construction that maximizes sound isolation while maintaining a lightweight profile:
- 9mm GYP (Gypsum Board) - High-density outer layer provides mass and fire resistance
- 1mm IIR Damping Layer - Absorbs vibration and disrupts sound transmission
- 7mm FCB (Fibre Cement Board) - Second dense layer for enhanced performance and durability
This 9+1+7 configuration effectively disrupts multiple sound frequencies, making it ideal for applications where both weight and performance matter.
Why Choose SG-C10?
The SG-C10 offers the perfect balance between acoustic performance and practical installation requirements. Its lighter weight makes it ideal for retrofit projects and ceiling applications.
Key Benefits
- Lightweight Design: At 25.5kg, significantly easier to handle than heavier alternatives
- 32dB Sound Reduction: Excellent sound isolation for privacy and comfort
- Versatile Installation: Can be cut with saw, drilled, and secured with self-tapping screws
- Multiple Finish Options: Compatible with wallpaper, glass, tiles, and cement finishes
- Compact Profile: 17mm total thickness minimizes space loss
Technical Innovation
The IIR damping layer acts as a vibration absorber, converting sound energy into minimal heat energy. Combined with the mass-spring-mass principle of the GYP and FCB layers, this creates superior sound transmission loss.
Installation Methods
SG-C10 can be installed using standard construction methods:
- Direct mounting with self-tapping screws to metal or wood studs
- Adhesive application combined with mechanical fastening
- Framework mounting for suspended ceiling applications
The board can be easily cut to size using standard carpentry tools, making it adaptable to various project requirements.
Recommended Applications
SG-C10 is specifically designed for environments requiring effective sound isolation with weight considerations:
- Hospitality: Hotel rooms, serviced apartments
- Residential: Condominiums, apartments, private homes
- Commercial: Meeting rooms, office partitions
- Entertainment: Cinemas, recording studios
- Healthcare: Clinics, consultation rooms
Application
Product Specifications
Laboratory Test Results & Standards
| Test Category | Result / Classification | Test Method(s) | Rating / Classification Standard |
|---|---|---|---|
| Airborne Sound Insulation | Rw(C; Ctr) = 32(−1; −2) dB Report: ENC2503012GZ23Z8 | GB/T 19889.3-2005 - Laboratory measurement of airborne sound insulation. | GB/T 50121-2005 |
| Formaldehyde Emission | E0; not detected (ND) Report: ENC2503012GZ23Z5 | GB/T 7657-2013 - 1 m³ chamber method. This reference requires lab clarification. | GB/T 39600-2021 |
