Sound InsulationSG-F8
Composite Sound Insulation Board
Composite sound insulation board with 8mm and 7mm Fibre Cement Board layers bonded by a 1mm IIR damping core. 16mm total thickness, 32dB sound reduction. Ideal for residential, studios, cinemas, and entertainment venues.
Product Description
SG-F8 Composite Sound Insulation Board is designed according to the transmission characteristics of sound. It consists of 3 layers of materials that are 8+1+7mm each with a total of 16mm thickness.
A damping layer selection of 1mm IIR (Isobutylene-Isoprene Rubber) is sandwiched between a layer of 8mm FCB (Fibre Cement Board) and a layer of 7mm FCB (Fibre Cement Board). By combining materials with different masses, stiffness levels, and thicknesses, the system disrupts multiple sound frequencies and increases Rw performance.
Product Engineering Principle & Performance

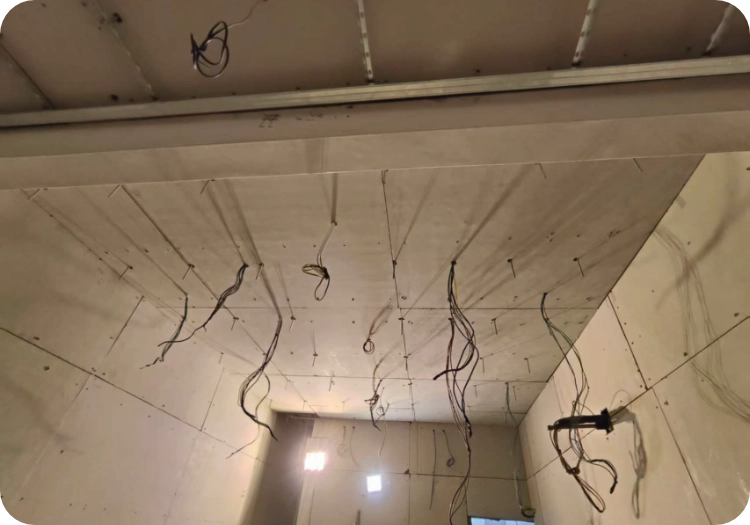

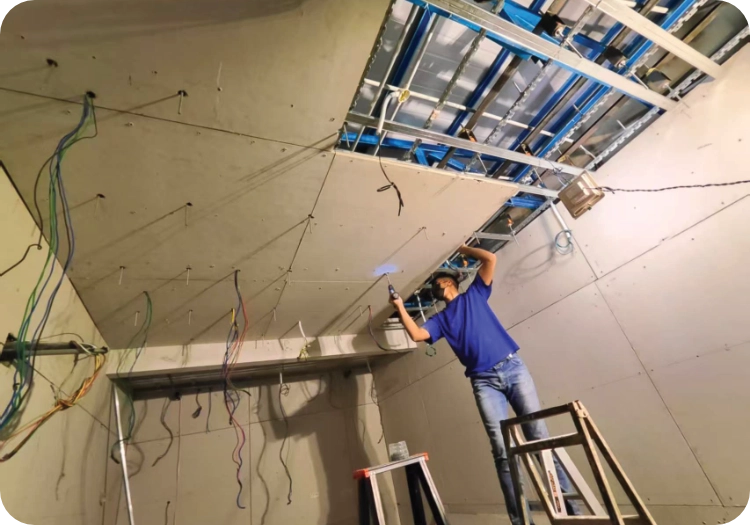

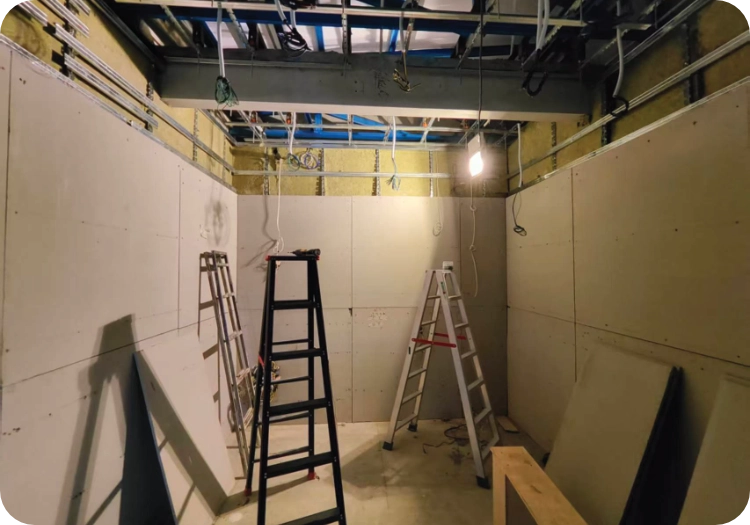

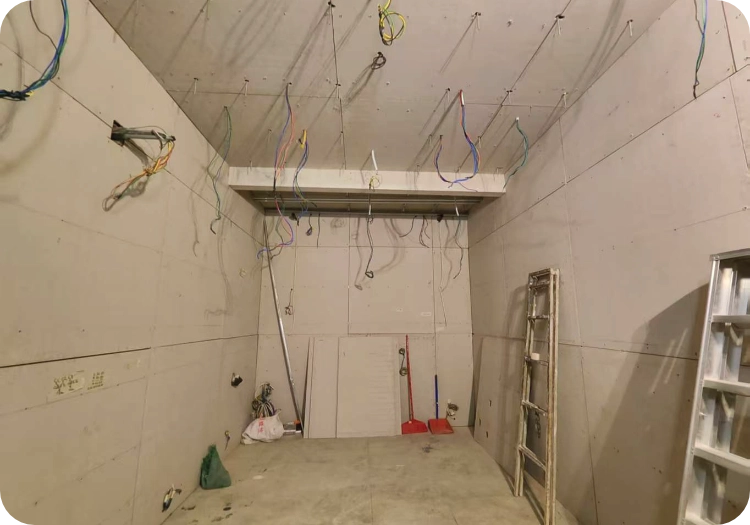

Project Gallery
Product Engineering Principle
The SG-F8 uses a dual fibre cement construction with a damping core for reliable sound isolation:
- 8mm FCB (Fibre Cement Board) - Dense outer layer for mass and fire resistance
- 1mm IIR Damping Layer - Absorbs vibration and disrupts sound transmission
- 7mm FCB (Fibre Cement Board) - Second dense layer for performance and durability
This 8+1+7 configuration effectively disrupts multiple sound frequencies, delivering dependable performance in a cost-effective board.
Why Choose SG-F8?
The SG-F8 pairs two high-density fibre cement layers with an IIR damping core, making it a robust, fire-safe board for a wide range of acoustic projects.
Key Benefits
- 32dB Sound Reduction: Reliable acoustic isolation across applications
- Dual Fibre Cement Layers: High mass and excellent fire resistance
- Versatile Installation: Can be cut with saw, drilled, and secured with self-tapping screws
- Multiple Finish Options: Compatible with wallpaper, glass, tiles, and cement finishes
- Compact Profile: 16mm total thickness minimizes space loss
Technical Innovation
The IIR damping layer converts sound energy into minimal heat energy, while the two differing-mass fibre cement boards disrupt sound across a wider frequency range through the mass-spring-mass principle.
Installation Methods
SG-F8 can be installed using standard construction methods:
- Direct mounting with self-tapping screws to metal or wood studs
- Adhesive application combined with mechanical fastening
- Framework mounting for suspended ceiling applications
The board can be easily cut to size using standard carpentry tools.
Recommended Applications
SG-F8 is designed for environments requiring effective, fire-safe sound isolation:
- Entertainment: Clubs, KTV & karaoke rooms, cinemas
- Professional: Recording studios, broadcast rooms
- Hospitality: Hotels, serviced apartments
- Residential: Condominiums, apartments, private homes
Application
Product Specifications
Laboratory Test Results & Standards
| Test Category | Result / Classification | Test Method(s) | Rating / Classification Standard |
|---|---|---|---|
| Airborne Sound Insulation | Rw(C; Ctr) = 32(−1; −2) dB Report: ENC2503012GZ23Z8 | GB/T 19889.3-2005 - Laboratory measurement of airborne sound insulation. | GB/T 50121-2005 |
| Formaldehyde Emission | E0; not detected (ND) Report: ENC2503012GZ23Z6 | GB/T 7657-2013 - 1 m³ chamber method. This reference requires lab clarification. | GB/T 39600-2021 |
