Application
Sound DampingSG-DM612A
Vibration Damping Pad
Aluminium-faced damping sound insulation pad manufactured using high-purity imported materials combined with a high-density polymer damping base. 610 x 610mm peel-and-stick for multi-application use.
Product Description
SG-DM612A Vibration Damping Pad is an aluminium-faced vibration damping pad manufactured using high-purity imported materials combined with a high-density polymer damping base and soft aluminium composite surface. Its strong damping characteristics immediately alter the original vibration transmission path, delivering outstanding mid-to-low-frequency sound insulation performance.
The 2mm damping core enhances structural stability and improves resonance control, making it an excellent multi-application composite material for wall, ceiling, floor and pipe sound insulation systems.
Manufactured by Langsound. Supplied by Sounds Good Sdn Bhd. Installation can be arranged through an appointed or Sounds Good certified contractor.
Product Engineering Principle & Performance

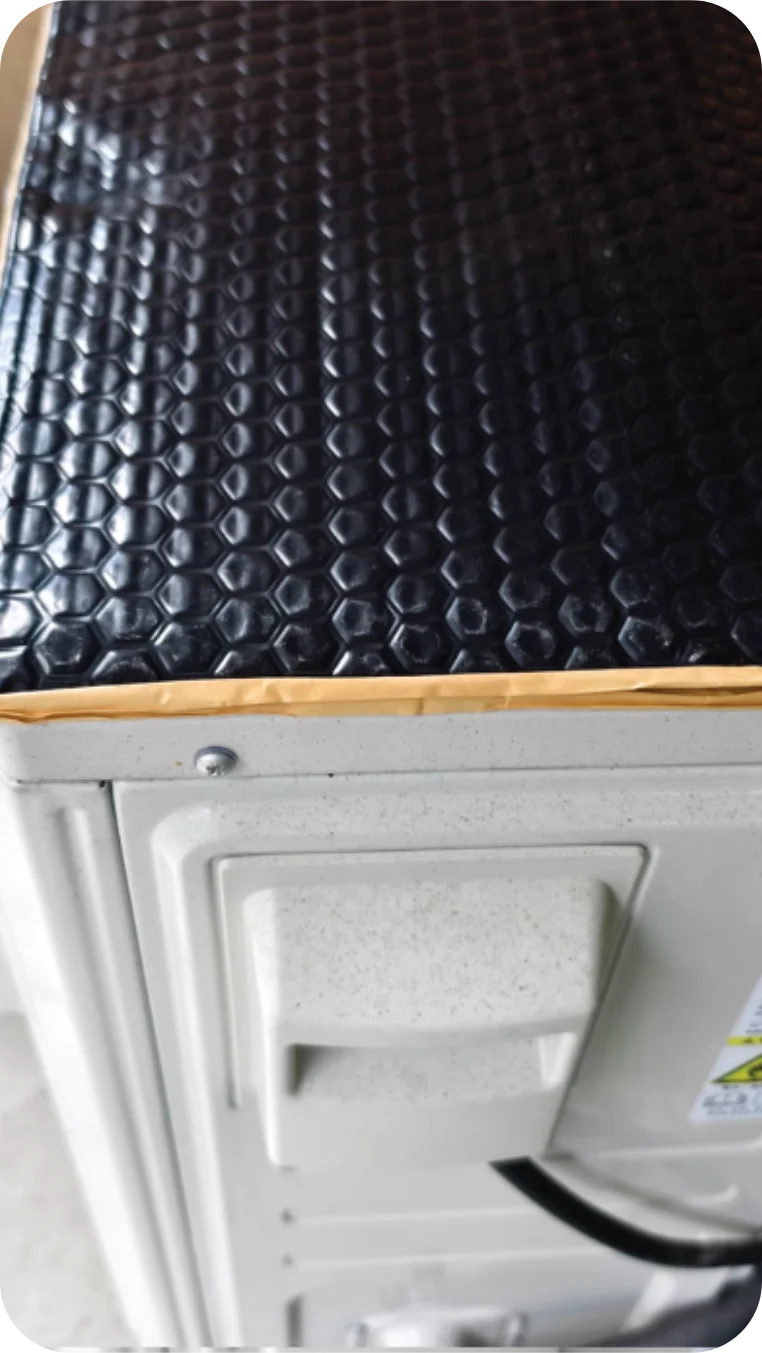

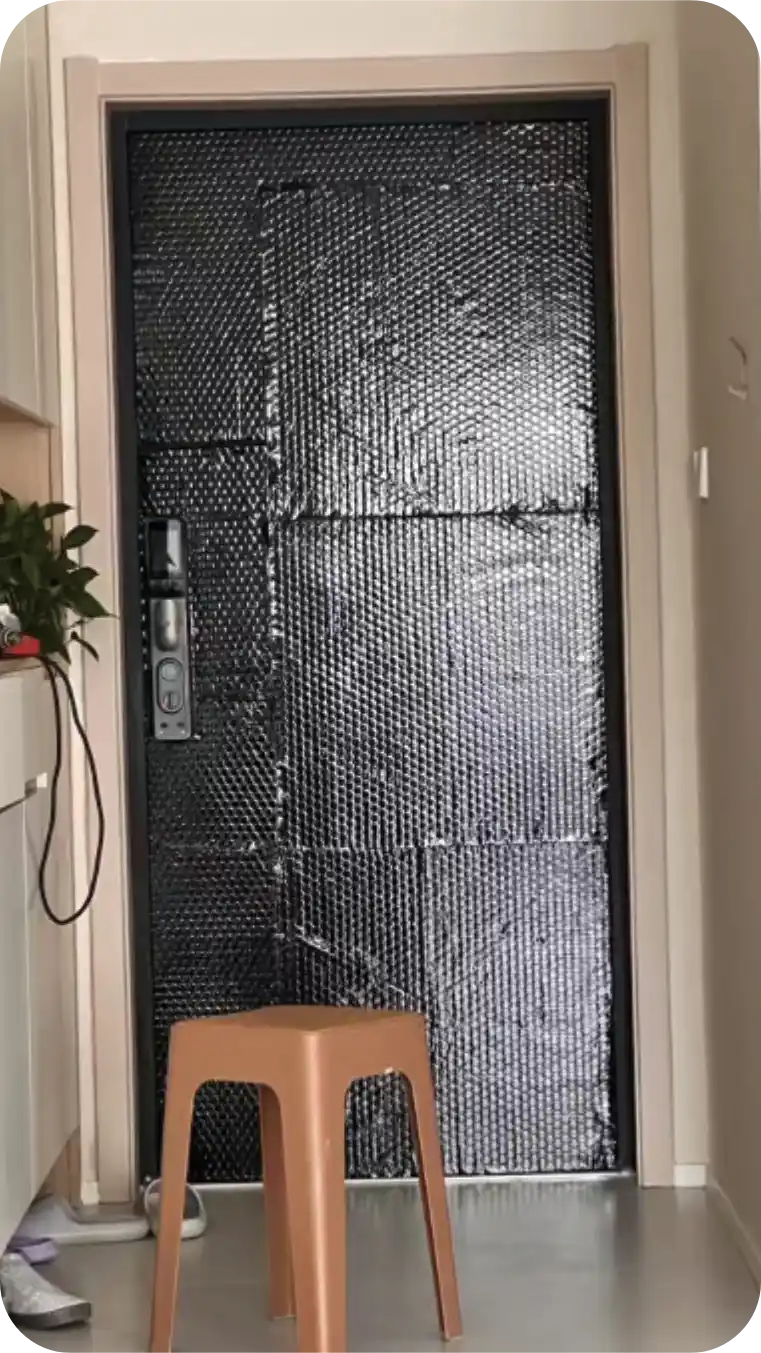

Project Gallery
Application
Product Specifications
Laboratory Test Results & Standards
| Test Category | Result / Classification | Test Method(s) | Rating / Classification Standard |
|---|---|---|---|
| Airborne Sound Insulation | Rw(C; Ctr) = 27(−1; −2) dB Report: J25C063552104BR | GB/T 19889.3-2005 - Laboratory measurement of airborne sound insulation. | GB/T 50121-2005 |
| Formaldehyde Emission | E0; formaldehyde emission = 0.038 mg/m³ Report: J25C063552105BR | GB/T 17657-2013, Clause 4.60 - 1 m³ chamber method. | GB/T 39600-2021 |
| Reaction to Fire | B1 (B) Report: CBT3051272231 Supplier confirmation of the fire report’s SKU applicability is pending. | GB/T 20284-2006 - Single burning item test GB/T 8626-2007 - Ignitability test. | GB 8624-2012 |
