D10
Floating Screed Acoustic Floor Damping System
The D10 system uses a 10 mm SG-DM1010 vibration damping mat beneath a self-leveling cement screed. The total floor build-up depends on the screed and selected finish.

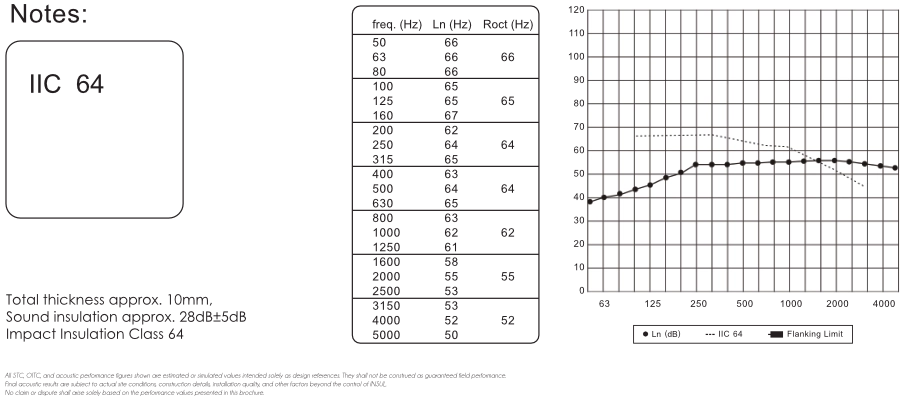

The INSUL prediction is IIC 64 for the configuration shown, including 8 mm carpet, 10 mm rubber and 100 mm concrete. The brochure states approximate sound insulation of 28 dB ±5 dB. These values apply to the simulated configuration; site performance depends on the construction and installation.
Exploded Mounting Structure
4 layers · top to bottom
Layer Build-up
- 1
Floor Finishes - Carpet, Tiles and etc.
- 2
Self-Leveling Cement
- 3
SG-DM1010 Vibration Damping Mat
1000 × 9800 × 10 mm
- 4
Concrete Slab
Layer Specifications
| Layer | Product | Specification | Application |
|---|---|---|---|
| Insulation | Vibration Damping Mat | 1000 × 9800 × 10 mm | Minimized rigid connections |
| Protection | Cement Self-Leveling | - | Protect sound-insulation and damping layer |
System Description
Floor Cover
8 mm Carpet
Panel 1
1 × 10 mm Rubber + 1 × 100 mm Concrete
Details
Panel size 2.4 m × 2.4 m · Partition surface mass 251 kg/m²
Acoustic Performance
Sound Insulation Prediction
All STC, OITC and acoustic performance figures are estimated / simulated values (INSUL Sound Insulation Prediction v9.0.22, © Marshall Day Acoustics 2017) intended solely as design references - not guaranteed field performance. Final results depend on site conditions, construction details and installation quality, beyond the control of INSUL.
Products Used in This System
Specify the D10 System
For Your Project
Our technical team can adapt this system to your site conditions and provide a full installation specification and quotation.
